New Chinese Style Living Room Lamp Modern Minimalist Bamboo Wood Wall Lamp Uplight / downlight

DETAILS

• Light shade in Material Form pressed birch slats, powder coated steel back plate
• LED max 20 W.
• Handcrafted.
• E14 base
• Your purchase of handcrafted items helps preserve craft traditions worldwide.
• Hardwired
• Voltage: 220V-240V 50Hz
• Suitable for use in livingroom,kichen or bedroom
• Ingress Protection IP20, IEC Protection Class II, CE marking
• The use of special bulbs such as halogen, mirror or 12 V bulbs in Secto Design lamps is prohibited, due to overheating. This product is supplied with an example bulb of energy efficiency class F.
• Maintenance:Wipe dust regularly. To remove fresh stains wipe with a slightly damp cloth.


  ---





  Information

  The back plate of the Secto 4230 / Secto Small 4231 wall lamp is made of powder painted steel. The lamp base is attached to the back plate. The shade has wooden rails for the plate. The plate is fastened to the shade with a top screw.





  Switch on cable (standard)

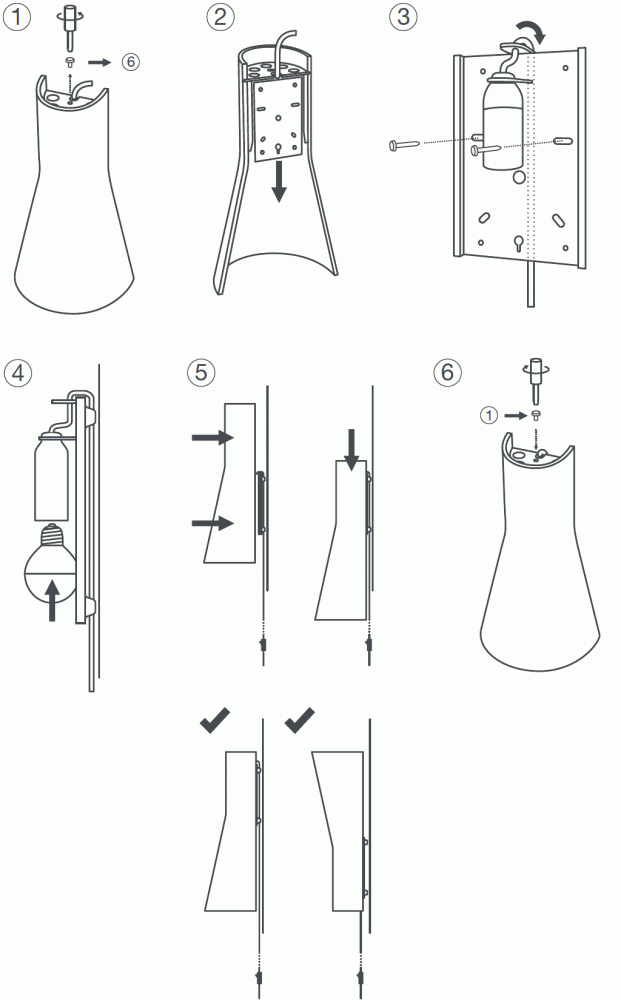

  Step 1	Loosen the top lock screw.
  Step 2	Remove the wall part from the lamp shade.
  Step 3	Put the wall part in right place and screw tight both of the screws.
  Step 4	Place in the light bulb.
  Step 5	Place in the lamp shade by first pushing it inwards, and then slide it through the rails downwards.
  Step 6	Place in the top lock screw.

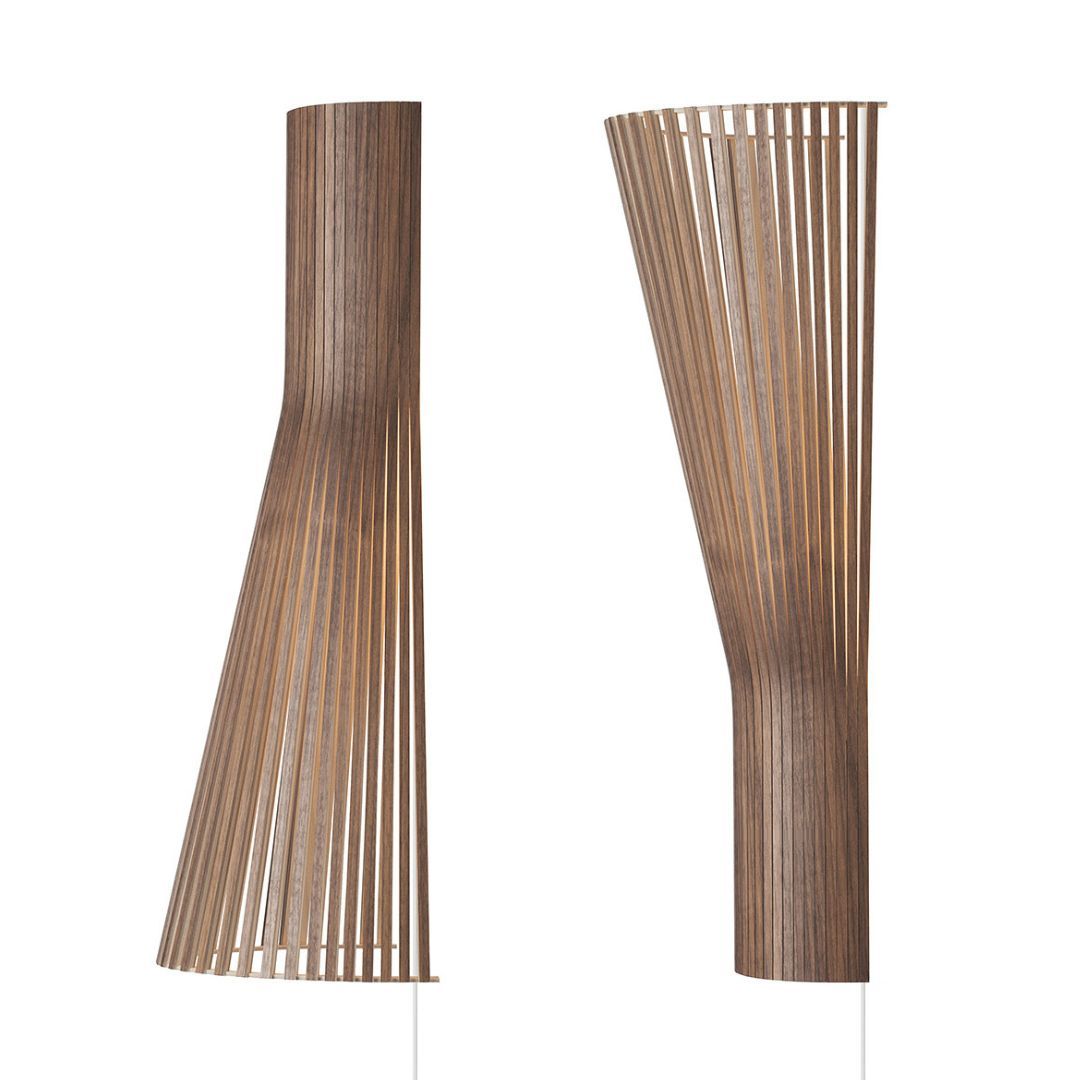

  NOTE: This wall light can be placed facing either upwards or downwards.

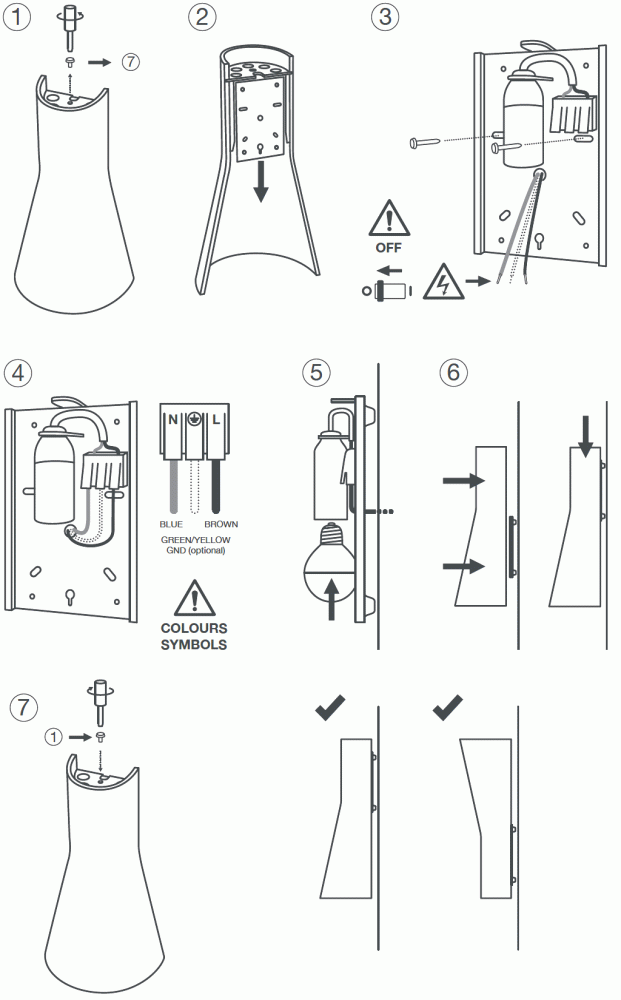

  Direct wall mounting

  Step 1	Loosen the top lock screw.
  Step 2	Remove the wall part from the lamp shade.
  Step 3	Put the wall part in right place and screw tight both of the screws. Warning: Switch off the electricity in order to avoid electric shocks.
  Step 4	Connect the wires: L=brown, N=blue.
  Step 5	Place in the light bulb.
  Step 6	Place in the lamp shade by first pushing it inwards, and then slide it through the rails downwards.
  Step 7	Place in the top lock screw.

  NOTE: This wall light can be placed facing either upwards or downward

DIMENSIONS

• Size:
   Height 60 cm Depth 9–18 cm Width 13–31 cm Weight 1,1 kg
• Canopy:5.9"(15cm)diam
• Cord length:59"(1.5m).
